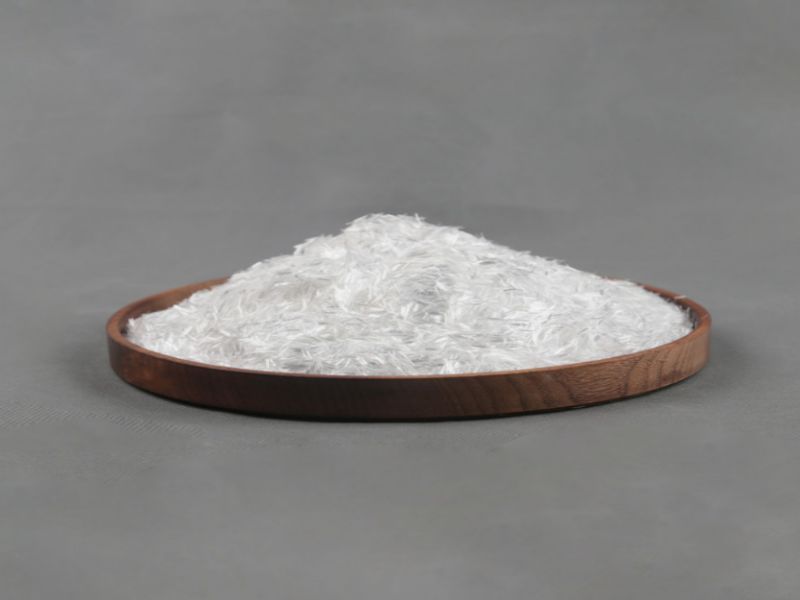

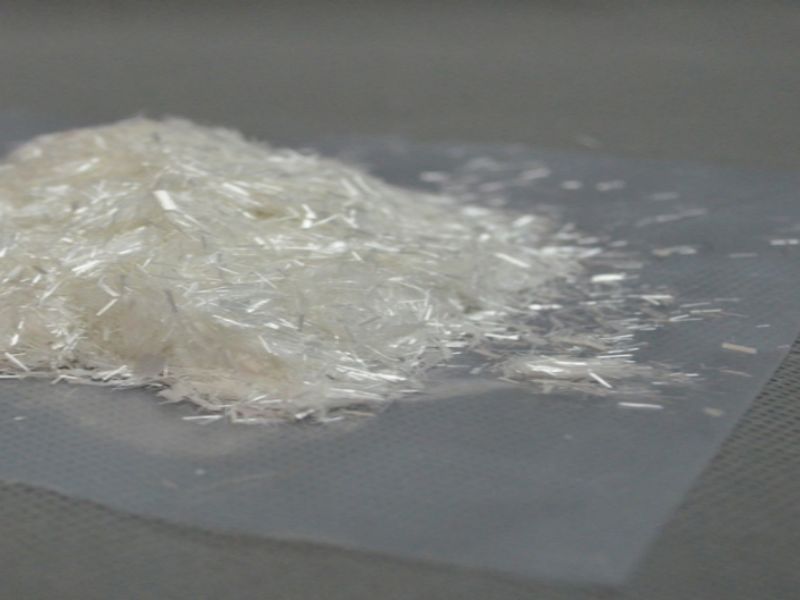

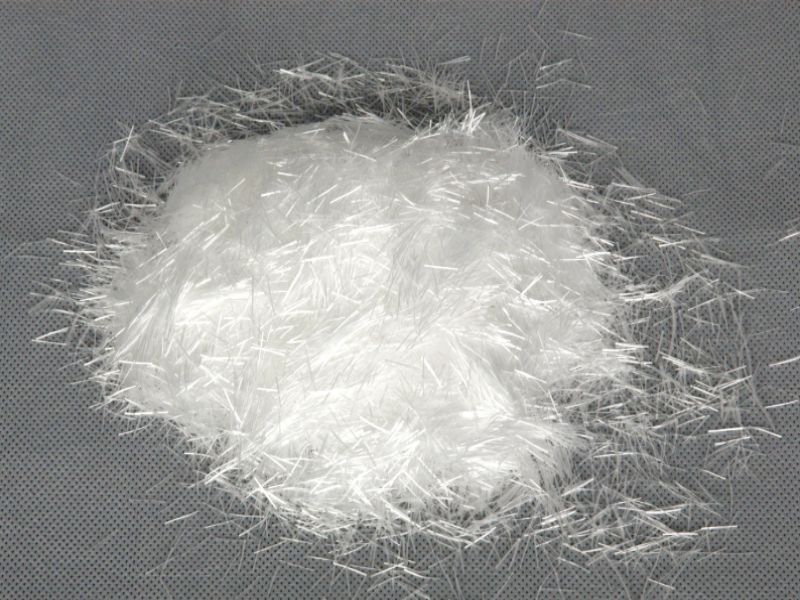

3mm Reinforced Quartz Fiber Chopped Strands
3mm reinforced quartz fiber chopped strands have a purity of 99.98% and a density of 2.2g/cm3.
The tensile strength of 3mm reinforced quartz fiber chopped strand is 7GPa; the tensile modulus is 70GPa.
3mm reinforced quartz fiber chopped strands have excellent dielectric properties, good chemical stability, high-temperature resistance, corrosion resistance, low thermal conductivity, and thermal shock resistance.
1.Introduction to 3mm Reinforced Quartz Fiber Chopped Strands
This product is a high-performance inorganic fiber manufactured from high-purity silicon dioxide or
natural quartz crystals.It retains many of the inherent properties and characteristics of solid quartz. It serves as an excellent
high temperature-resistant material and is utilized as a reinforcing agent in advanced composite materials.
Its exceptionally high purity (≥99.95%) endows it with a range of superior attributes, including
outstanding ablation resistance, excellent thermal stability, low thermal conductivity, and high chemical
stability; furthermore, it exhibits exceptional dielectric properties.

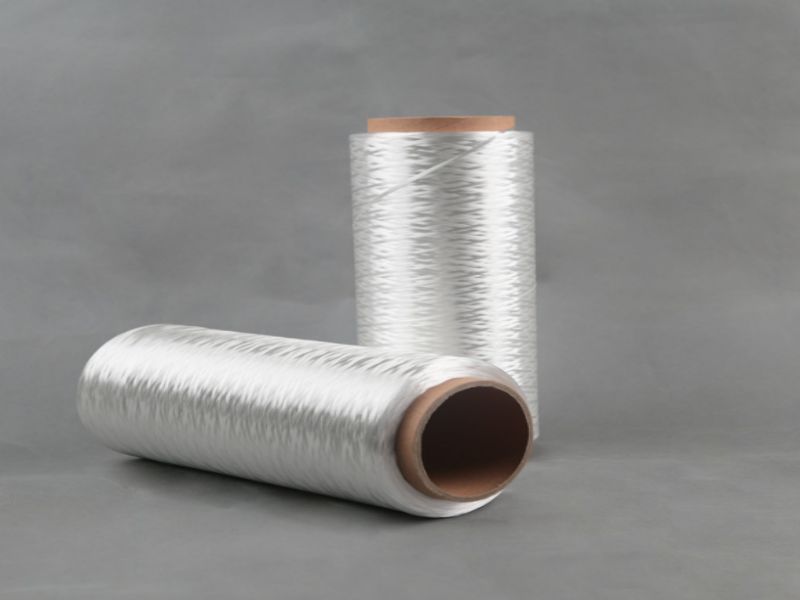

In terms of the manufacturing process, quartz fibers are first produced as continuous filaments through high-temperature melting;
these filaments then undergo subsequent stages such as drawing, cooling, and surface treatment before finally being cut into chopped strands of various lengths to meet specific application requirements.
The typical length range generally falls between a few millimeters and several tens of millimeters, a parameter that can be adjusted to suit the processing techniques of the composite materials in which they are used.
This chopped form facilitates easier dispersion and mixing, making it particularly well-suited for the fabrication of reinforced composite materials.
2. Product Parameter
| Model | Length(mm) |
| SA104-3 | 3 |
| SA104-6 | 6 |
| SA104-9 | 9 |
| SA104-12 | 12 |
| SA104-20 | 20 |
3.Product performance advantages:
Excellent performance, long-term use temperature is 1050℃, short-term use temperature can reach 1300℃;
Has good low-temperature and high-temperature strength;
Lightweight, heat-resistant, small heat capacity and low thermal conductivity;
4. Product Applications:
3mm reinforced quartz fiber chopped strands are used in the manufacture of high-temperature
resistant and thermal insulation products, for the reinforcement of phenolic plastics, and for the
production of ablative components;
3mm reinforced quartz fiber chopped strands serve as reinforcing materials for exterior trim
components in automobiles, trains, and ship hulls;
3mm reinforced quartz fiber chopped strands are utilized in the manufacture of quartz fiber
mats, as well as for the injection molding of high-temperature-resistant engineering plastics.
Used as a Reinforcing Material in Blends with Other Materials:
Mixed with Synthetic Rubber Resins: Can be blended with materials such as rubber or silicone
phenolic plastics for use as ablative materials.
Mixed with Thermoplastic Resins: Can be utilized in injection molding or compression molding
applications.
Mixed with Ceramic Prepregs and Fired: Serves as a reinforcing material for ceramics.
