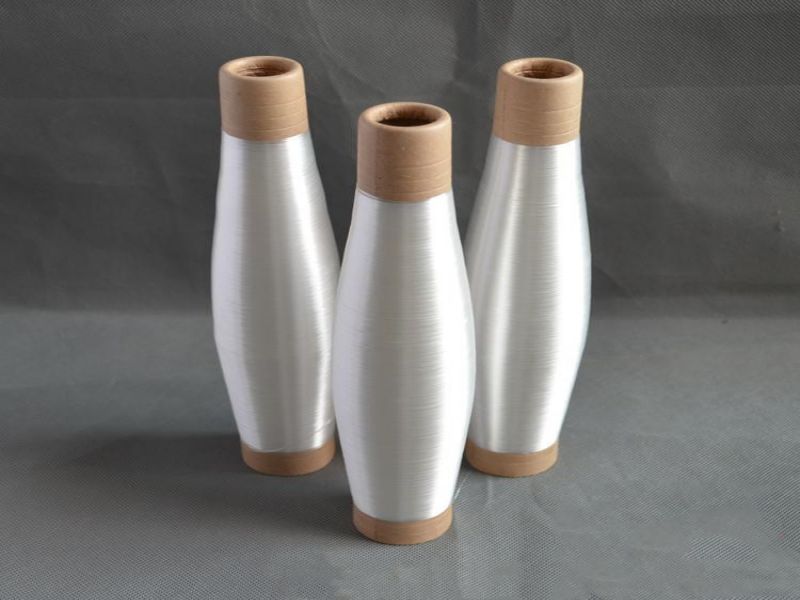

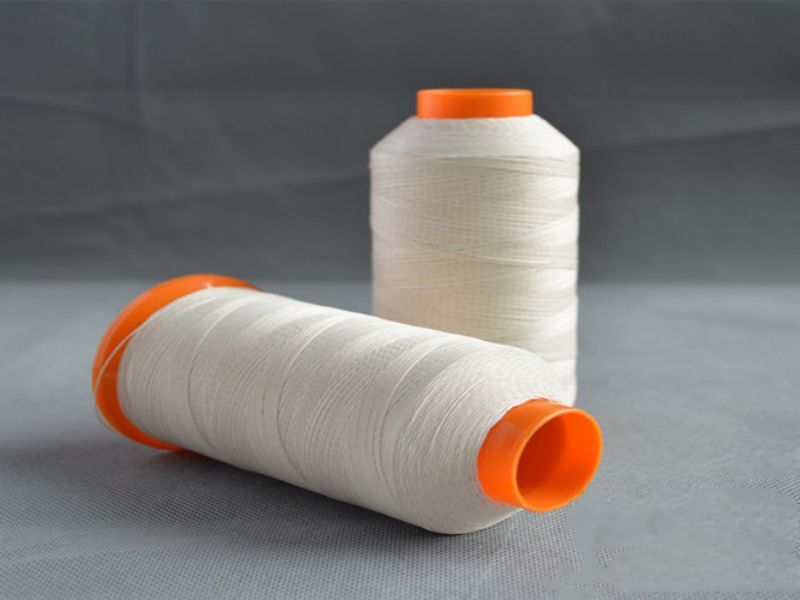

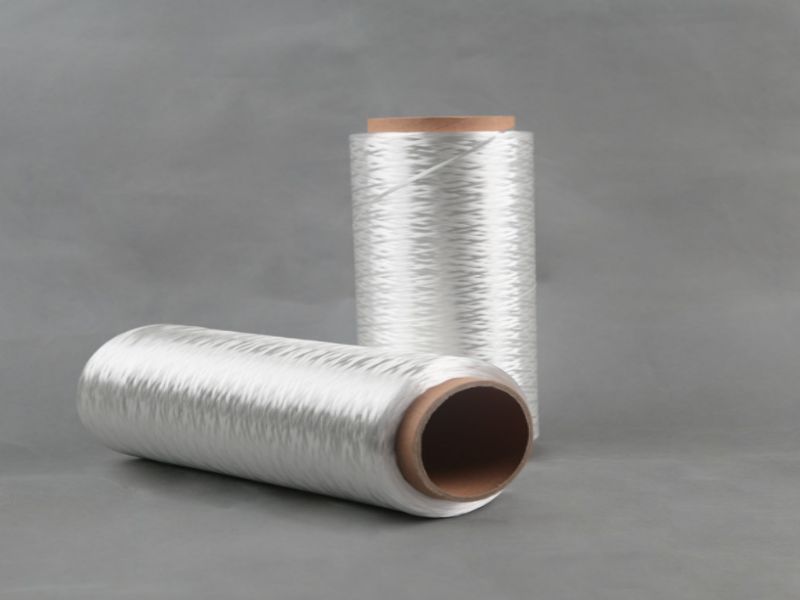

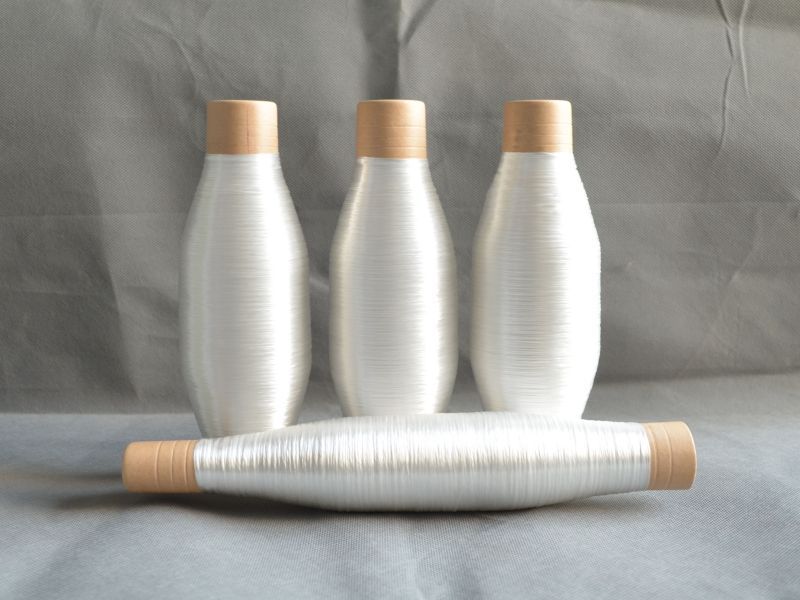

High Strength Tensile Quartz Fiber Superfine Yarn

1. Product Introduction

The single filament diameter of the high-strength tensile quartz fiber super fine yarn is only 5 μm. Compared with the traditional 7.5 μm quartz yarn, the tensile strength of the high-strength tensile quartz fiber super spun yarn is increased by 30% at the same linear density, thus making the fabric tensile resistant.

The strength is also increased by about 30%, or the yarn used in composite materials with the same strength is reduced by 30%. Therefore, thinner parts can be designed with the same performance, or stronger parts can be made with the same thickness.

Since the specific surface area of the high-strength stretched quartz fiber super fine yarn is 33% higher than that of the traditional 7.5µm yarn, when compounded with resin, the bonding surface is increased by 33%, and the bond with the resin is stronger.

2. Product Parameter

3. Quartz Fiber Super Fine Yarn Product Feature

• Ultra-high temperature resistance: Taking Shenjiu as an example, the long-term use temperature is 1050~1200℃, the softening point temperature is 1700℃, it is thermal shock resistant and has a longer service life.

• Insulation, low thermal conductivity, stable performance.

4.Manufacturing Process of Quartz Fiber Super Fine Yarn

•        Raw Material Purification

       Ultra-high purity SiO₂ (purity ≥ 99.95%) is prepared using high-purity quartz sand.

•            Melt Drawing

Quartz is melted in a high-temperature electric furnace and drawn into continuous fibers through a stencil.

• Surface Treatment

A high-temperature resistant wetting agent (such as a silane coupling agent) is applied to improve the bonding force between the fiber and the resin matrix.

• Yarn Forming

Yarn of different specifications is produced through twisting, plying, and other processes, suitable for weaving, braiding, or winding.

5. Quartz Fiber Super Fine Yarn Product Details

• Wave-transparent materials (aircraft satellite radomes, electronic countermeasures devices);

• Stealth materials (aircraft, fighter jets, bombers, ships, submarines, etc.);

• High-performance circuit boards (high-frequency circuit boards, high-speed circuit boards);

• Ablation-resistant materials (aerospace vehicle thermal protection materials, missile exhaust pipes)

• High temperature resistant thermal insulation (aircraft engines, fuselage fire partitions, semiconductor, optical fiber manufacturing)

Quartz fiber super fine yarn, as a key strategic material of the 21st century, is driving innovation in industries such as new energy and electronic information. Its unique combination of properties gives it irreplaceable advantages in extreme environments and high-end applications. In the future, with advancements in manufacturing technology and the expansion of application scenarios, quartz fiber yarn will undoubtedly shine in more fields, becoming a "rising star" in the field of high-performance materials.
