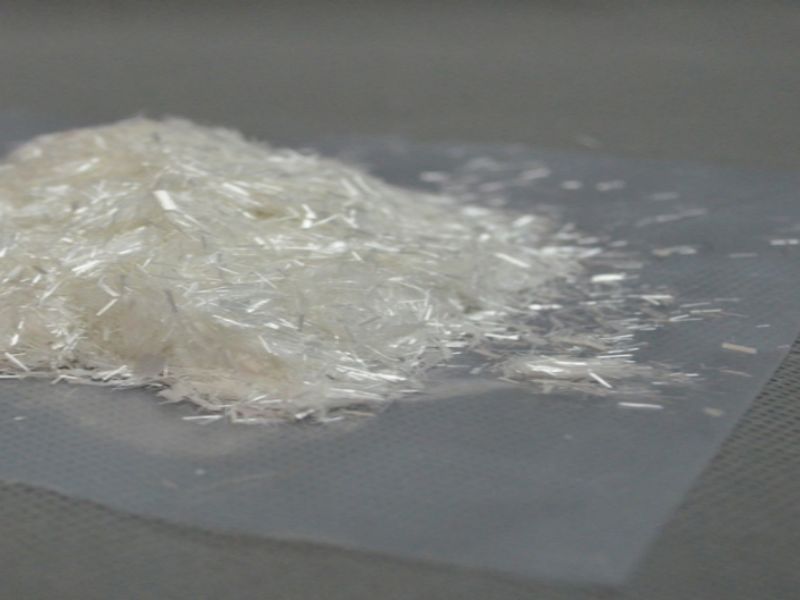

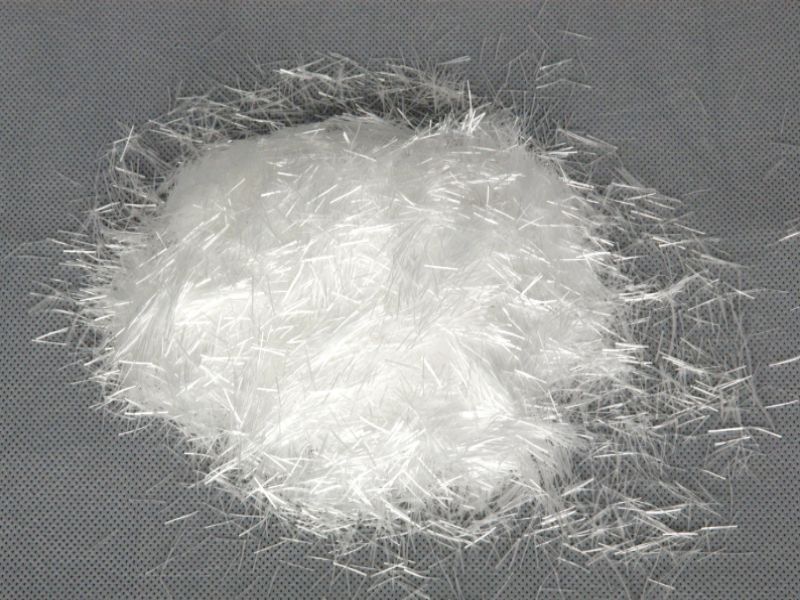

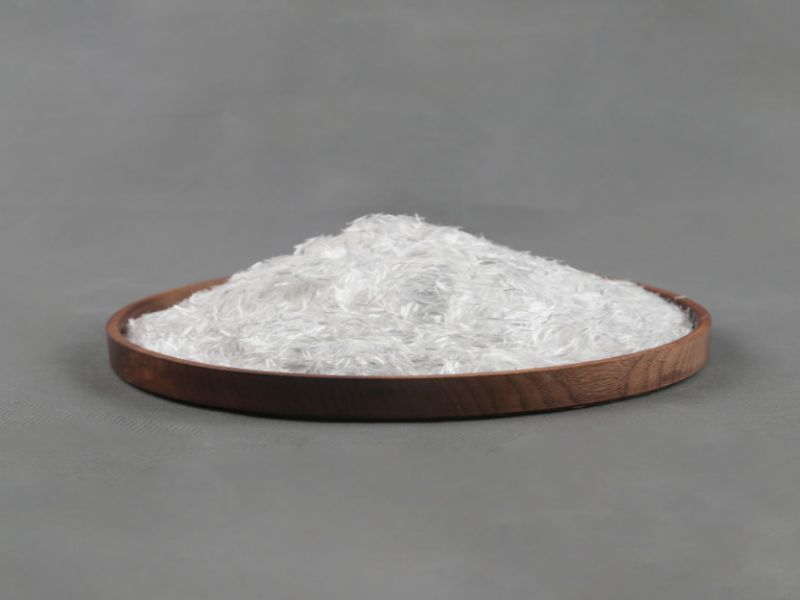

6mm Quartz Fiber Chopped Strands
6mm quartz fiber chopped strands have excellent dielectric properties: the dielectric constant is only 3.74 and the dielectric loss is only 0.0002, making it a good wave-transmitting material.
6mm quartz fiber chopped strand has low thermal conductivity and a small thermal expansion coefficient, only 0.54*10-6/K, which is one-tenth that of ordinary glass fiber. It is heat-resistant and insulated.
1. Product Introduction
The fiber typically has a diameter of 9-13 μm and a moisture content of ≤0.1%. It features good bundle properties and excellent flowability, making it easy to uniformly composite with resin. Chopped lengths from 3 mm to 25 mm can be customized.
It is primarily used for reinforcing thermoplastics (such as automotive parts) or as inorganic fiber-reinforced mortar concrete to improve crack resistance.
The product is packaged in composite film paper bags and should be stored in a dry environment to maintain performance stability.
6mm quartz fiber chopped strands have good comprehensive properties and can be used to prepare a variety of composite materials.
When preparing wave-transparent materials, 6mm quartz fiber chopped strands are often used as reinforcements for composite materials because their dielectric constant and loss tangent are relatively low.
In addition, as the temperature increases, its elastic modulus increases accordingly, thus ensuring that the mechanical properties of the wave-transparent material will not decrease significantly while having a high wave transmittance.
2. Product Parameter
| Model | Length(mm) |
| SA104-3 | 3 |
| SA104-6 | 6 |
| SA104-9 | 9 |
| SA104-12 | 12 |
| SA104-20 | 20 |
3. Product Performance Advantages:
Excellent fiber bundle properties and low lint content.
Excellent dry flowability, highly advantageous for continuous feeding, resulting in very uniform distribution of glass fiber in the finished product.
Excellent wet dispersibility and flowability, easily impregnated with resin.
Combustible material content: ≤0.2%
6mm quartz fiber chopped strands have good chemical stability and excellent high-temperature insulation properties;
6mm quartz fiber chopped strands are non-toxic, harmless, and have no adverse effects on the environment.
4. Product Application Scope:
It is primarily used to reinforce thermoplastics. Due to its excellent cost-effectiveness, it is particularly suitable for compounding with resins as a reinforcing material for automotive, train, and ship hulls; it is also used in high-temperature needle-punched felt, automotive sound-absorbing sheets, and hot-rolled steel.
Its products are widely used in the automotive, construction, aerospace, and everyday consumer goods industries; typical products include automotive parts, electronic and electrical products, and machinery products.
It can also be used as an inorganic fiber to enhance the impermeability and crack resistance of mortar concrete. It is a highly competitive product to replace polyester fiber, lignin fiber, and other fibers in reinforcing mortar concrete.
It can also improve the high-temperature stability, low-temperature crack resistance, fatigue resistance, and extend the service life of asphalt concrete.
