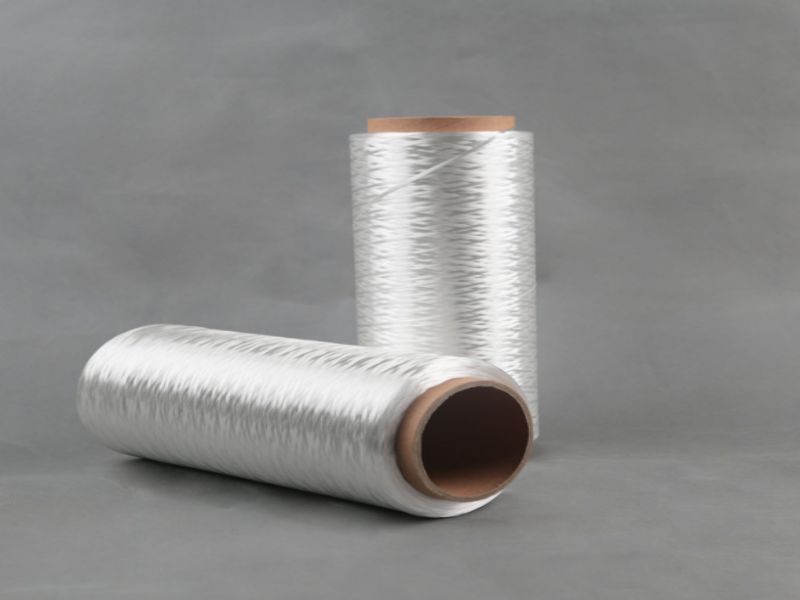

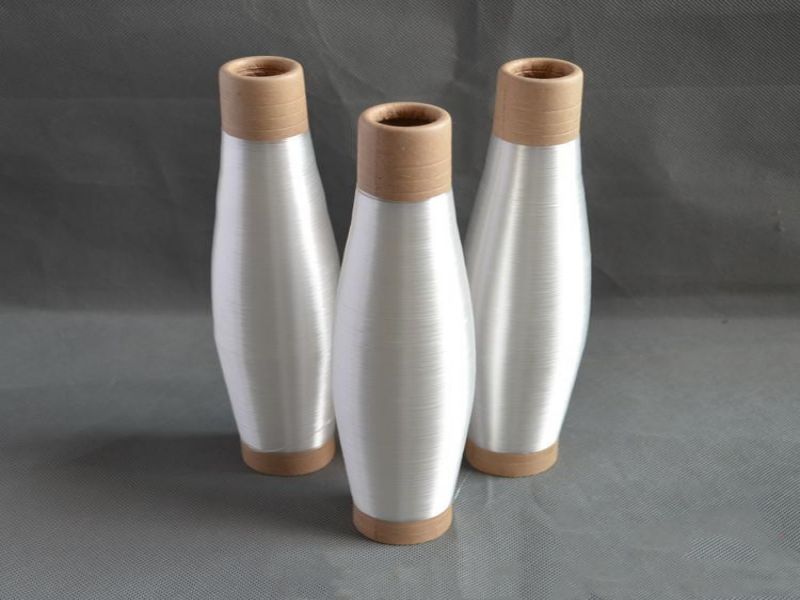

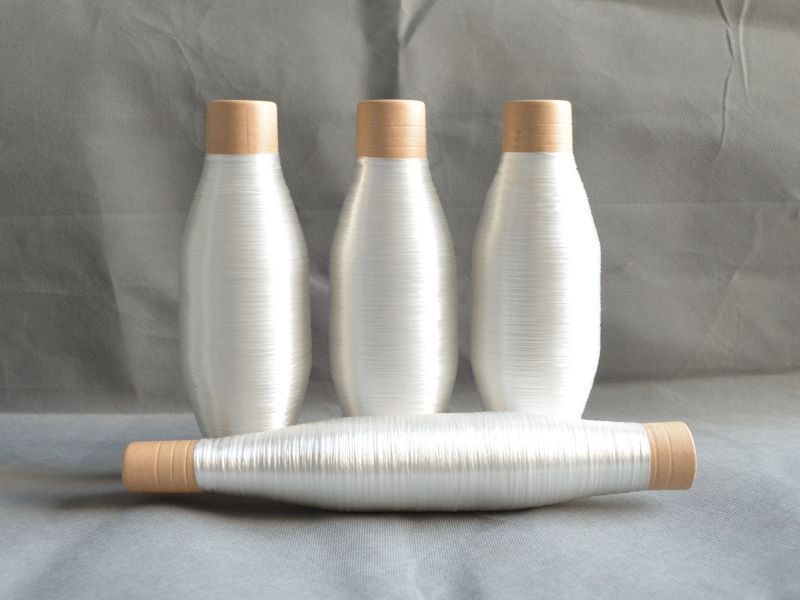

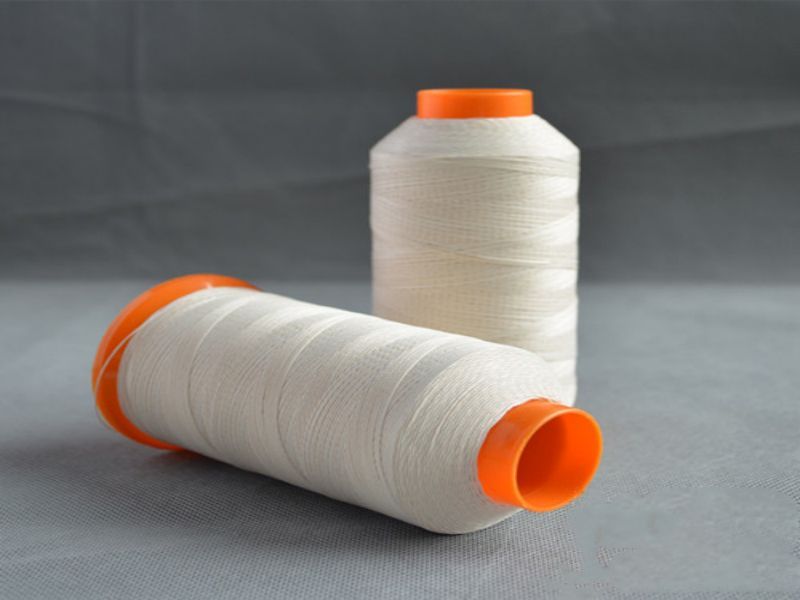

Heat Resistance Quartz Fiber Yarn For Weaving

1. Product Introduction

High-temperature resistant silica fiber yarn for weaving is made from continuous fibers of high-purity silica (SiO₂ content ≥99.95%), which are twisted together to form a bundle. The single filament diameter is typically 5-15 μm, and it can be wound onto a bobbin with different twist directions and ply numbers.

It has a long-term temperature resistance of 1050-1200℃, a softening point of 1700℃, and a maximum tensile strength of 6000 MPa. It also possesses a low dielectric constant (3.74), low thermal conductivity (coefficient of thermal expansion 0.54 × 10⁻⁶/K), and good chemical stability.

High-temperature resistant silica fiber yarn for weaving exhibits high temperature resistance, high strength, and good insulation properties. It can be used in various textile processing procedures and is widely applied in optical fiber, aerospace, semiconductor, and other industrial fields.

High-temperature resistant silica fiber yarn is currently the most widely available flexible inorganic material with extremely low dielectric properties and extremely high temperature resistance.

It can replace alkali-free glass fiber, high-silica fiber, basalt fiber, etc, and can partially replace aramid fiber, carbon fiber, etc, giving it unique advantages in ultra-high temperature and aerospace fields.

Quartz fiber yarn has a low coefficient of linear expansion and the rare characteristic that its elastic modulus increases with increasing temperature.

 In addition, this high-temperature resistant quartz fiber yarn for weaving has a low coefficient of linear expansion and the rare characteristic that its elastic modulus increases with increasing temperature.

2. Product Parameter

3. Product Feature

• Excellent dielectric properties: the dielectric constant is only 3.74 and the dielectric loss is only 0.0002. It is an excellent wave-transparent material at high temperatures.

• Ultra-high temperature resistance: long-term use temperature 1050 ~ 1200 ℃, softening point temperature 1700 ℃, thermal shock resistance, longer service life.

• Low thermal conductivity: The thermal expansion coefficient is small, only 0.54×10-6∕K, which is one-tenth that of ordinary glass fiber. It is both heat-resistant and insulating.

4. Product Details

• Heat-resistant quartz fiber yarn for woven fabrics has good insulation properties and high resistivity. The resistivity is 1×1018Ω·cm~1×106Ω·cm at 20℃~1000℃, and has a long service life.

• The fire-extinguishing blankets that appear in current fire-fighting training can be made of woven heat-resistant quartz fiber yarn.

• Lightweight, insulated, can be used repeatedly.
