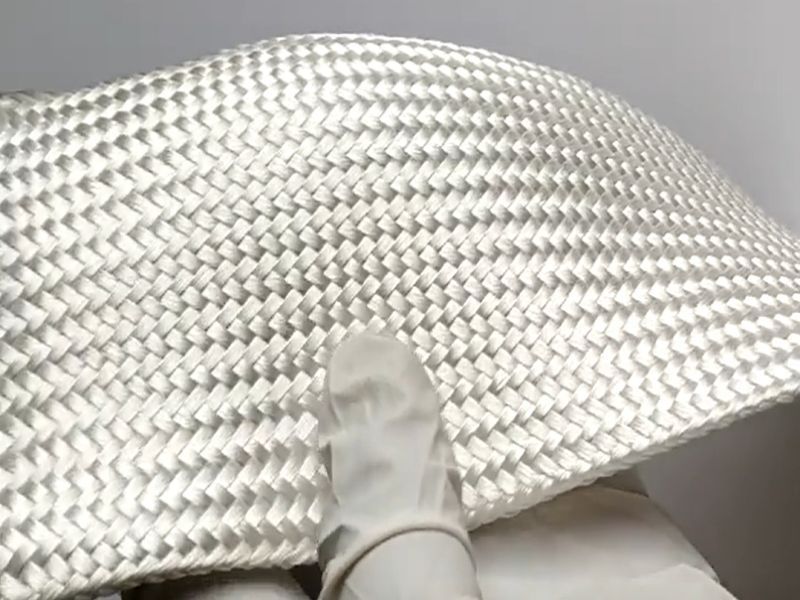

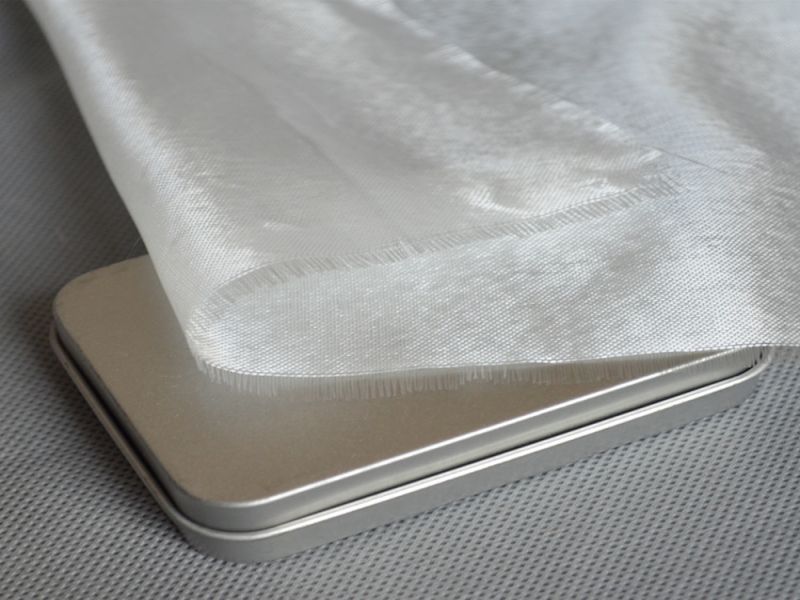

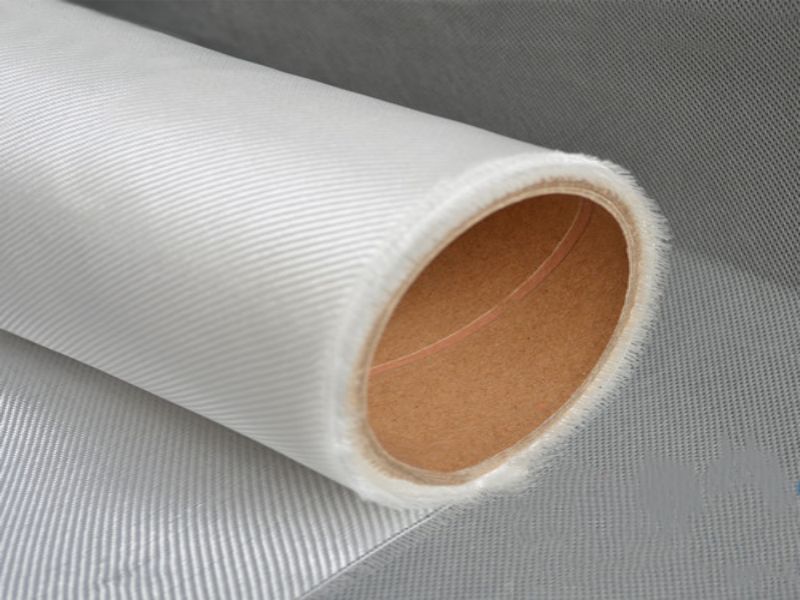

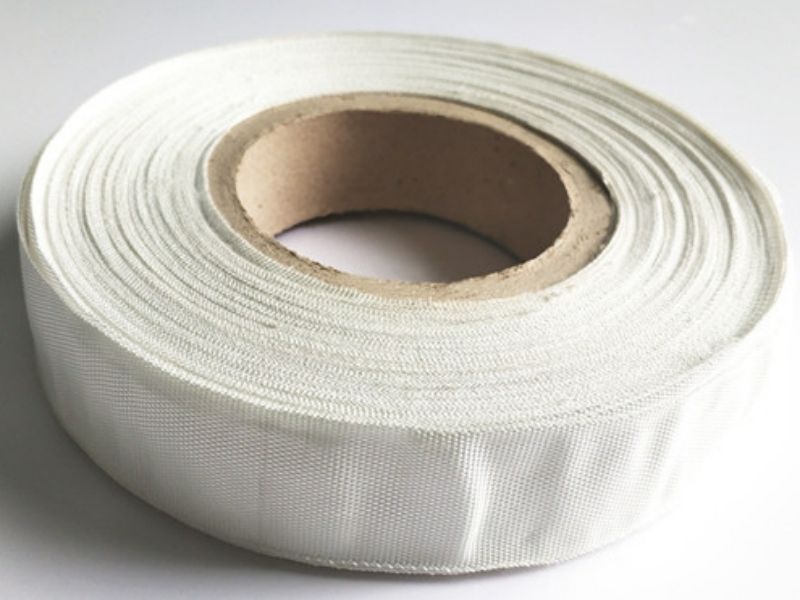

Heat Resistant Quartz Fiber Plain Cloth For Wall
Heat-resistant quartz fiber plain cloth for wall is a high-purity silica inorganic fiber cloth with the characteristics of high temperature resistance, corrosion resistance, fireproof and non-combustible, low dielectric and high wave transmittance.
1. Product Introduction
Heat-resistant quartz fiber plain cloth for walls is a cloth of various thicknesses and weaving styles made of quartz fiber with a certain warp and weft density through weaving methods such as plain weave, twill weave, and satin weave. Its weaving method is not only plain weave but also twill and satin weave.
Plain weave:
Heat-resistant quartz fiber plain cloth for walls has a compact structure, flat structure, and clear texture, and is suitable for most industrial purposes such as electrical insulation materials and reinforcing materials.
Twill weave:
Compared with plain weave, the same warp and weft yarns can be used to form a fabric with higher density, higher strength, and softer structure. Heat-resistant quartz fiber plain cloth for walls is suitable for ordinary reinforcement materials, air dust filter materials and coating products. base cloth.
Satin weave：
Compared with plain weave and twill, the same warp and weft yarns can be used to form a fabric with high density, large mass per unit area, and higher strength. Heat-resistant quartz fiber plain cloth for walls has a loose fabric, good hand feel, and is suitable for machinery. Reinforcement materials with high-performance requirements.
2. Product Parameter
| Model | Thickness(mm) | Structure | Wrap/Weft(count/cm) | g/m2 |
| SC108-10 | 0.1 | Plain/twill | （16±2）*（16±2） | 100 |
| SC108-11 | 0.11 | Plain/twill | （20±2）*（20±2） | 108 |
| SC108-14 | 0.14 | Plain/twill | （16±2）*（16±2） | 165 |
| SC108-20 | 0.2 | Plain/twill | （12±2）*（10±2） | 200 |
| SC108-22 | 0.22 | Plain/twill | （16±2）*（14±2） | 216 |
| SC108-28 | 0.28 | Satin | （20±2）*（20±2） | 280 |
3. Quartz fiber plain cloth for wall Product Feature
It has excellent dielectric and wave transmission properties, with a dielectric constant of 3.74 and a dielectric loss of 0.0002.
It has good high temperature resistance, with a continuous operating temperature of up to 1050℃ and a short-term operating temperature of up to 1200℃.
It has good insulation properties and high resistivity. Its resistivity ranges from 1×10^20Ω·m to 1×10^10Ω·m in the temperature range of 20℃ to 1000℃, and it has a long service life.
It has high tensile strength and length stability.
It is lightweight, heat-resistant, has low heat capacity, and low thermal conductivity.
4. Quartz Fiber Plain Cloth For Walls Product application
It can also be used as a wave-transmitting reinforcement material for rockets, aircraft nose cones, etc.
It is a high-end fire suit made of high-temperature resistant and flame-retardant fabric.
It can also be used as a protective cover, heat insulation blanket, and heat insulation cover cloth for ultra-high temperature resistant equipment.
It is a high-temperature resistant, heat-insulating, heat-preserving, and sealing material.
It can also be used as an electrical insulation material.
It is a better upgraded alternative to high-silica fiber cloth.
