Quartz Fiber Wool
In the field of industrial insulation materials, Quartz Fiber Wool stands out with its excellent performance and wide range of applications. This article will delve into the overview, uses, and features of Quartz Fiber Wool to help you gain a comprehensive understanding of this high-efficiency insulation material.
Overview of Quartz Fiber Wool
Quartz wool, also known as silica, silicon oxide, or silica clay, is a quartz fiber material made from high-purity silica (99.95% purity) and natural quartz crystals, with the molecular formula SiO2.

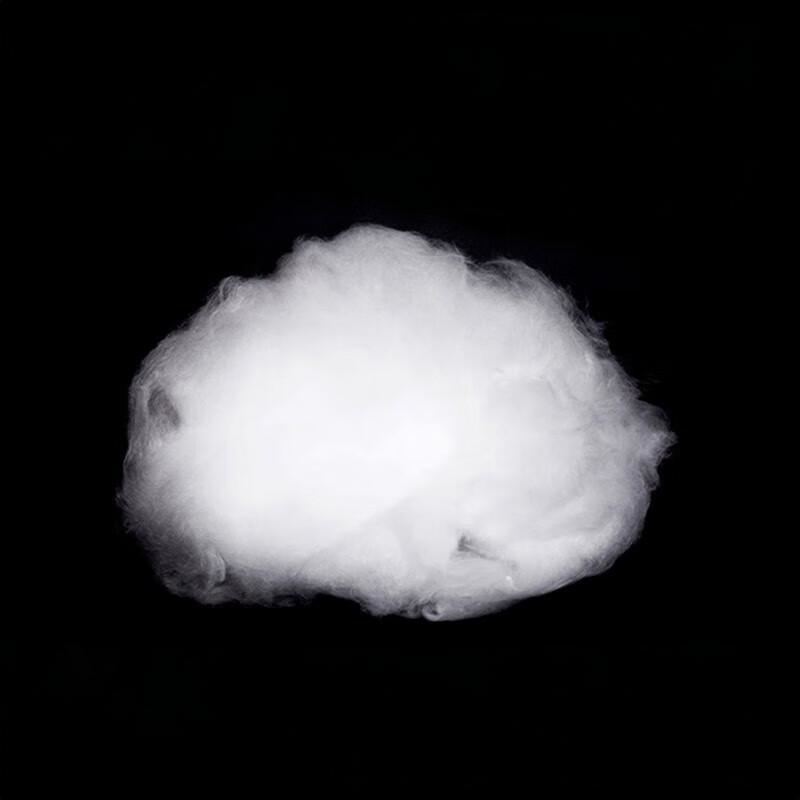

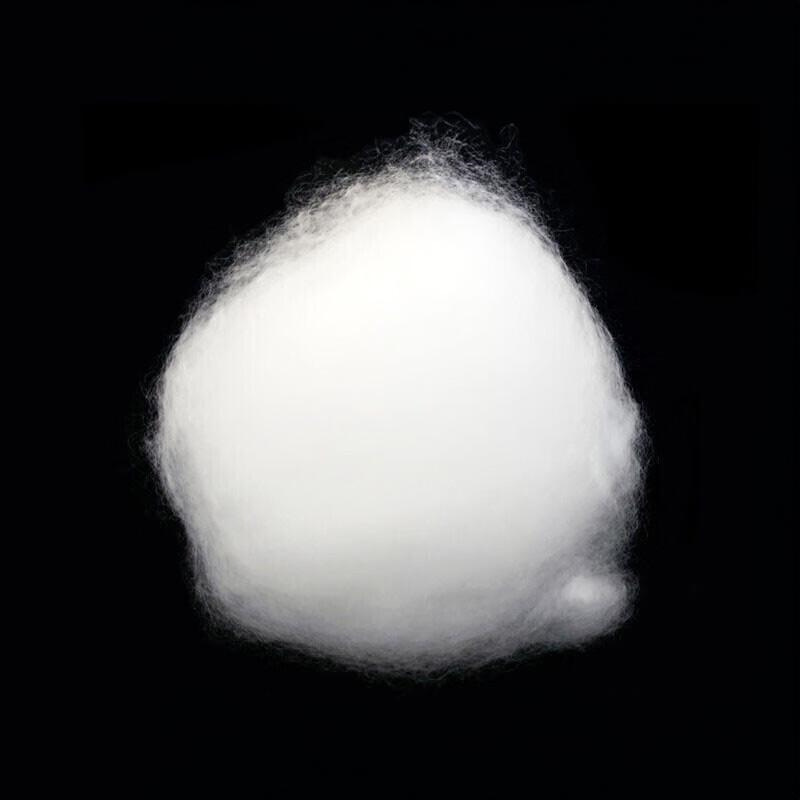

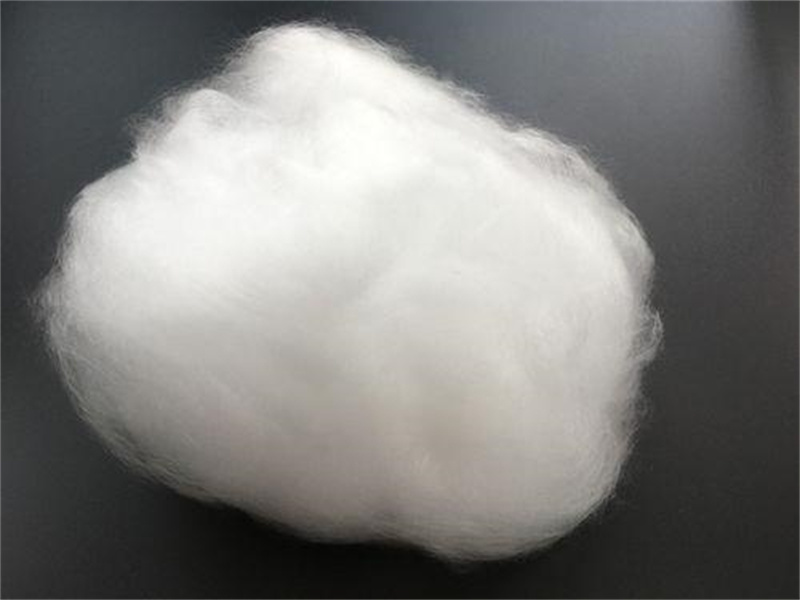

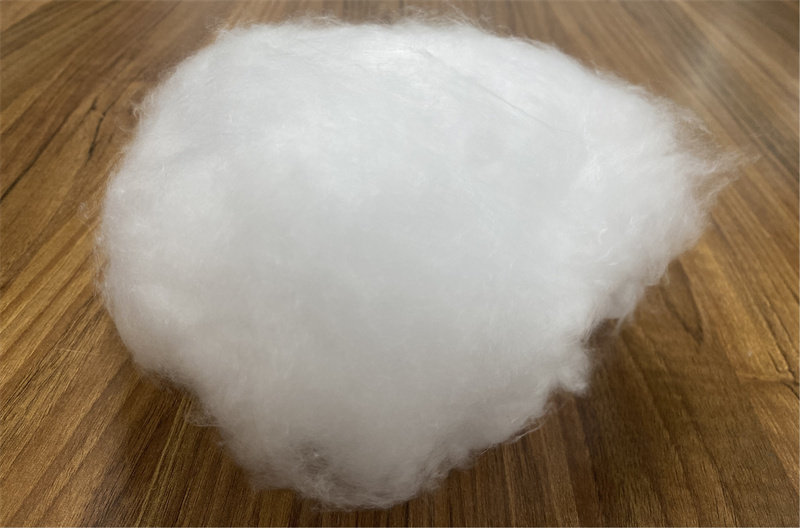

This material resembles cotton in appearance, is milky white, and has fiber diameters ranging from 0.7 to 10 micrometers. It is available in different specifications depending on its application. Quartz wool is characterized by high temperature resistance (long-term operating temperature up to 1000℃), corrosion resistance, good chemical stability, softness, light transmission, and electrical insulation. It is composed of pure quartz fibers, contains no binders, and the irregular arrangement of the fibers gives it a curled appearance. It is mainly used as a filler for laboratory elemental analysis reaction tubes, and also has applications in high-temperature insulation, chemical adsorption, filtration, catalyst support, and composite material reinforcement.
Model | Filament Diameter | Purity |
SA111-3 | 1-3μm | ≥99.95% |
SA111-5 | 3-5μm | |
SA111-9 | 5-9μm | |
SA111-11 | 9-11μm |
Uses of Quartz Fiber Wool
1. Industrial Furnace Lining
As an important refractory material, Quartz Fiber Wool can effectively withstand high temperatures, making it suitable for lining various types of industrial furnaces.
2. Thermal Insulation Material
Its excellent thermal insulation performance makes it ideal for use in high-temperature equipment and hot pipeline systems, helping to reduce energy consumption and improve work efficiency.
3. Fire Protection Material
Quartz Fiber Wool also has good fire resistance and is often used as a fire protection material in buildings, ships, and other fields to enhance fire safety.
Features of Quartz Fiber Wool
1. High-Temperature Resistance
Quartz Fiber Wool can maintain stable performance at high temperatures, with a continuous working temperature of up to 1050°C and a melting point above 1700°C.
2. Low Thermal Conductivity
Its unique microstructure results in low thermal conductivity, providing excellent insulation effects and reducing heat loss.
3. Good Chemical Stability
Quartz Fiber Wool exhibits strong acid and alkali resistance, making it resistant to chemical corrosion and maintaining stable performance in harsh environments.
4. Environmentally Friendly
Made from natural quartz, it is non-toxic, odorless, and does not produce harmful substances during use, meeting modern environmental requirements.
Quartz Fiber Wool is a versatile high-efficiency insulation material that offers significant benefits in industrial furnace linings, thermal insulation, and fire protection. Its excellent high-temperature resistance, low thermal conductivity, good chemical stability, and environmental friendliness make it an ideal choice for various high-temperature environments. Whether in industrial production or daily life, Quartz Fiber Wool plays a crucial role in enhancing energy efficiency and ensuring safety.
